Commercial & Industrial Applications

Industrial & Commercial Applications

Spray foam insulation has been used extensively within the industrial & commercial market since the early 80s for both insulation and condensation purposes in both new- build and existing structures such as:

  • Factories & office blocks
  • Warehouses & industrial units
  • Workshops & garages
  • Schools & hospitals
  • Retail & storage units
  • Swimming pools & municipal buildings
  • Car parks & concrete soffits

The material can be applied to almost any surface:

  • Metal
  • Wood
  • Concrete
  • Asbestos sheeting
  • Breezeblock and brick

The variety of uses of spray foam insulation means it is frequently specified on new build projects.

Contact The Spray Foam Insulation Experts:

In some cases it is used in older buildings purely for the encapsulation of asbestos sheeting. Its ease of application means that large areas can be covered within minimal timescales with little or no inconvenience.

Pre-1970s buildings suffering from inadequate insulation can be brought up to today’s specifications by using the appropriate thickness of insulation to comply with required U values and building regulations, providing a cost effective solution.

The spray foam is applied in liquid form, directly onto the back of the sheeting, enabling the insulation to seek and seal all air leakage, reducing heat loss, cutting down on carbon emissions and saving money on energy costs.

The energy efficiency of existing buildings can easily be raised to meet today’s building regulations. Cost effective structural upgrades are delivered by our trained, approved installers.

Contact The Spray Foam Insulation Experts:
0113 293 0068

Fire Resistance

Pirthane® ‘O’ is an insulating system with excellent fire resistant properties. It complies with the requirements for a Class 0 surface as defined in Paragraph A12(b) of Approved Document B ‘Fire Safety’, to the Building Regulations 1991. It has a Class 1 surface spread of flame when tested to BS476 Part 7 1997; when tested to BS476 Part 6 1989 the material achieved a fire propagation index (I) of not more than 12 and subindex (i1) of not more than 6.

PIRTHANE® ‘O’ comprises of a low thermal conductivity insulating foam.

 Duratherm® OS is an HCFC AND CFC FREE two component, 1:1 ratio, rigid foam system which produces a rigid foam of approximate density 40kg/m3  with exceptionally good compressive strength. Service temperature range -15°C to 70°C. When tested to BS476 part 7 the foam achieves a Class 1 surface spread of flame.

Vapour Control Layer (VCL)

Used in conjunction with Duratherm® OS, our sprayable vapour barrier coatings have Class 0 compliance and therefore dry to form a flame resistant finish.

Condensation problems

Buildings suffering from poor insulation are prone to issues with condensation. Applying a minimal thickness of 30mm of polyurethane spray foam insulation, will ensure a condensation free environment.

With spray foam insulation there is no need to compromise on insulation standards or energy efficiency in either retro-fit or new build projects.

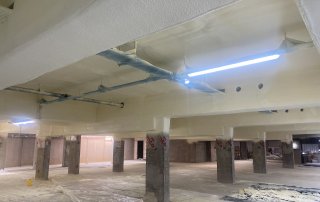

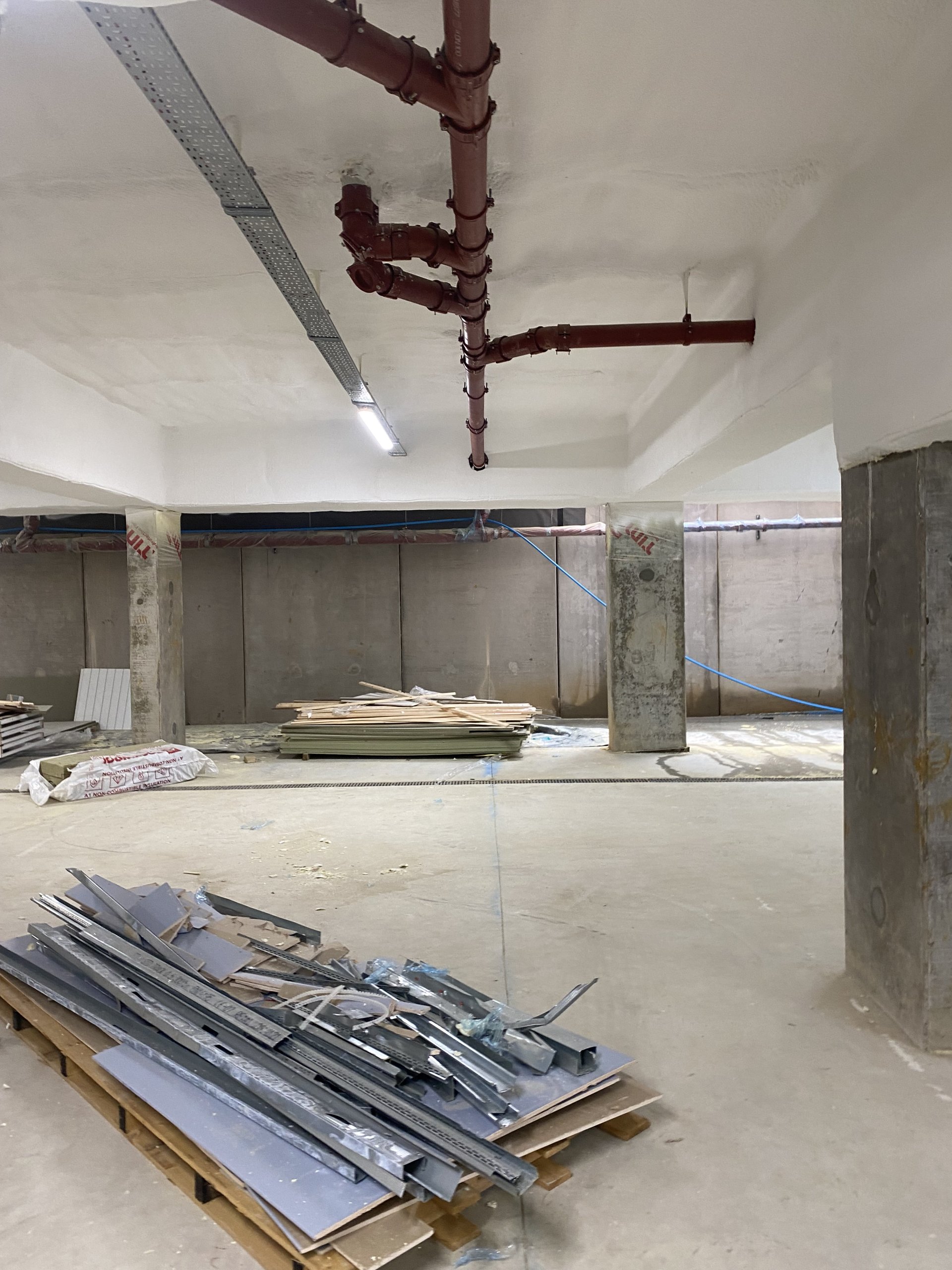

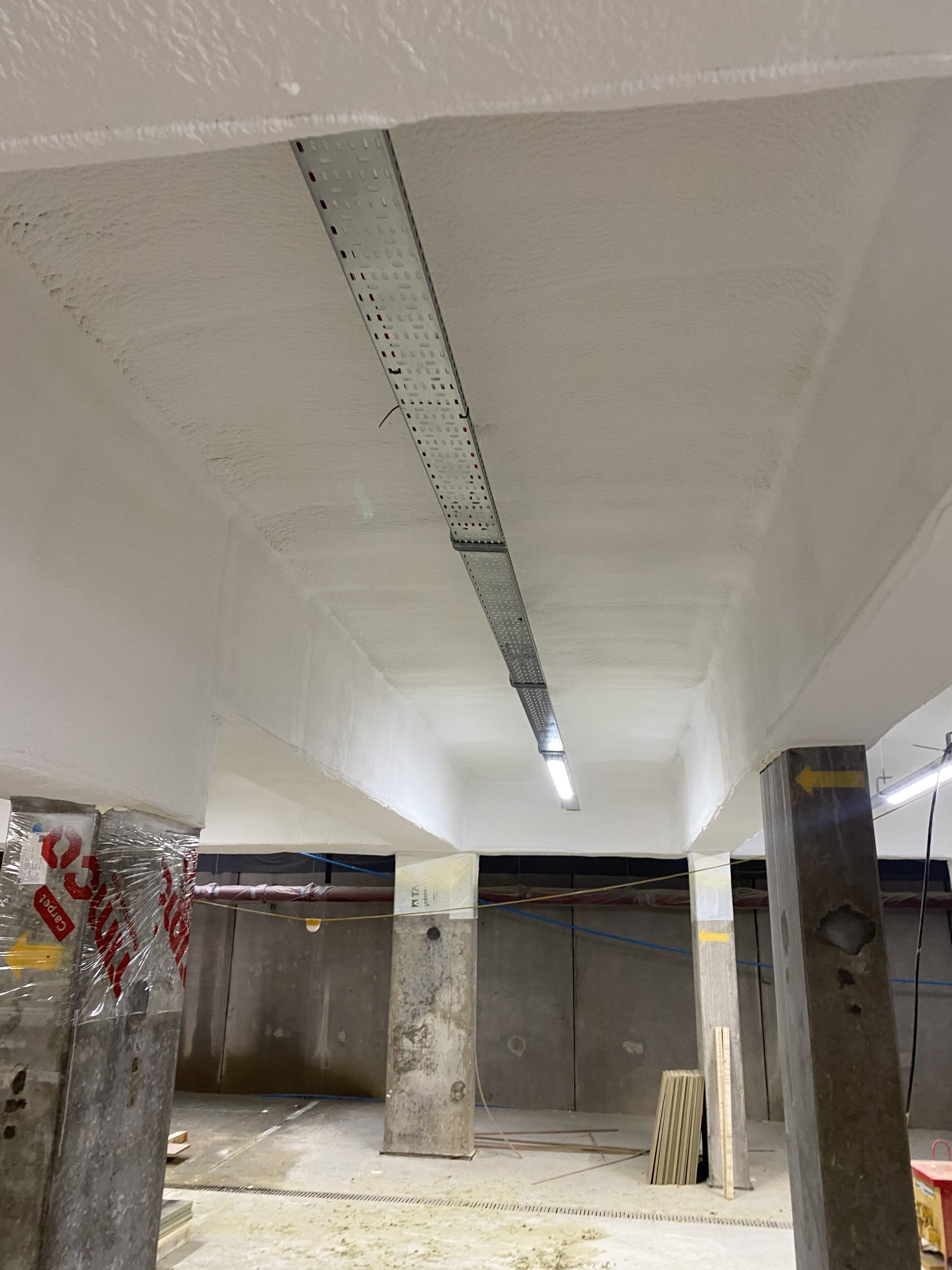

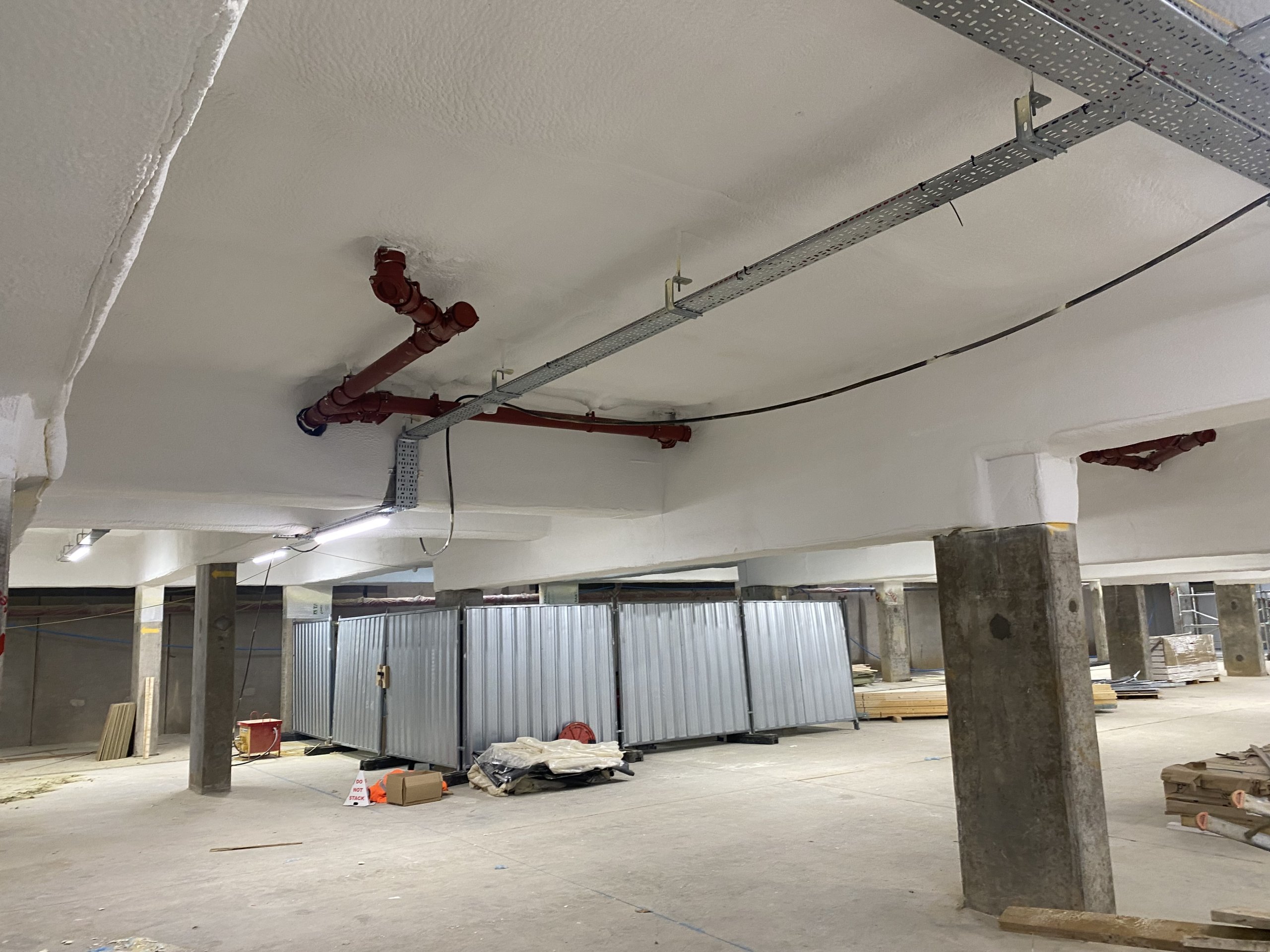

Project Gallery
